Thuis /Producten/Hoge druk stikstofgenerator/Lab Plant High Purity Nitrogen Generator Making Machine For Lab

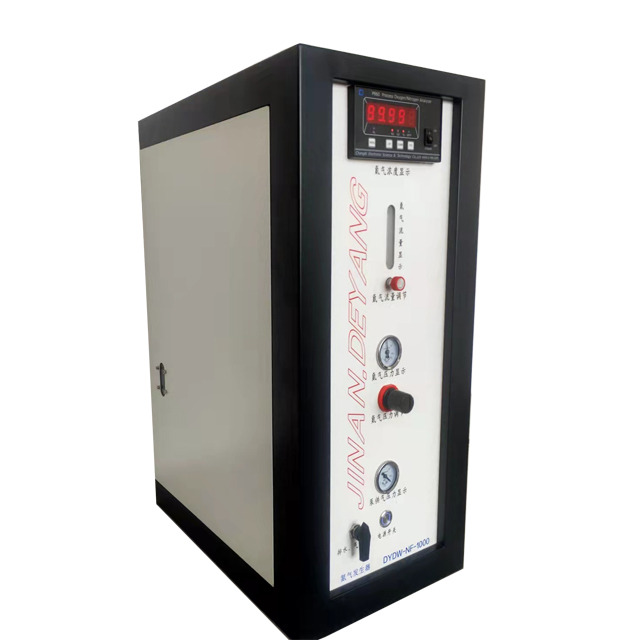

Lab Plant High Purity Nitrogen Generator Making Machine For Lab

1.0 Pieces
MOQ
Lab Plant High Purity Nitrogen Generator Making Machine For Lab
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Other, Advertising Company
Showroom Location: None
Condition: New
Usage: Nitrogen
Voltage: 220V
Weight: 40 KG
Dimension(L*W*H): 700*330*500mm
Warranty: 1 Year
Key Selling Points: Sustainable
Marketing Type: New Product 2022
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel, Other, Motor
Product name: Nitrogen Generator
Application: Laboratory
Function: High Purity
Purity: 95-99.999%
Advantage: Easy Operation
Pressure: 0-0.6 Mpa
Power input: 220v
Basis informatie
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Standard exporting packaging with nude , or as your request.
Supply Ability: 3000 Piece/Pieces per Year
Productomschrijving
Product Description

Product Features

1) Imported separation membrane, high purity, maintenance-free, long service life. 2) Built-in professional water separator to
prolong the service life of precision filter. 3)Four-stage filtration system, filtering > 0.01um particles to ensure the purity of
nitrogen. 4)Real-time nitrogen purity display, can clearly observe the purity of nitrogen produced by the machine, with high
precision. 5)The nitrogen gas outlet pressure value can be adjusted to protect the gas-using instrument from damage. 6) Built-in
compressor, no need for external configuration, and the use of suspended settings, low noise.
Specification
item
value
Applicable Industries
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Home Use, Food Shop, Printing Shops, Food & Beverage Shops
Showroom Location
None
Condition
New
Place of Origin
China
Shandong
Brand Name
JINAN DEYANG
Usage
Nitrogen
Production Rate
Voltage
220V
Weight
40KG
Warranty
1 Year
Key Selling Points
Sustainable
Marketing Type
New Product 2022
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Pressure vessel, Other, Motor, Engine
Product name
Nitrogen generator
Keyword
Nitrogen Generator System
Power
700W
Place of Origin
Shandong,China
Flow rate
1L/min
Dimension
700*330*530mm
Purity
95-99.999%
Advantage
Easy Operation
Pressure
0-0.6 Mpa
Application
General Industrial Fields
Company Profile
JINAN DEYANG CRYOGENIC TECHNOLOGY CO,.LTD
JINAN DEYANG is a professional company specialized in the R&D, manufacturing and sales of cryogenic equipment and gas production
equipment. There are various specifications of cryogenic cylinders, portable gas generators, gas cylinder automatic filling
systems, centralized gas supply devices and other products.
Working Principle
The compressor with tank provides a stable high-pressure air source, and the water and oil are further removed by the water-oil separator. After four-stage precision filtration, the moisture in the compressed air is fully removed and the particles > 0.01um are filtered. At this time, high-pressure, high-purity compressed air enters the membrane separation module. Because the membrane has different permeability and permeation rate to various gases with different molecular weights, after passing through the membrane separation module, nitrogen is separated from most of the oxygen, rich in oxygen. Oxygen exits the side holes of the membrane separation module, while nitrogen exits the other end of the membrane. After adjusting the pressure by the nitrogen pressure regulating valve and adjusting the purity by the nitrogen flowmeter, the high-purity nitrogen is discharged from the air outlet at the lower rear of the chassis.
